| Place of Origin: | ZheJiang, China |
| Brand Name: | For Toyota |
| Certification: | ISO 9001 / TS 16949 |
| Model Number: | 1NZ-FE ; 2NZ-FE |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Payment Terms: | 100% Payment Before Delivery |
| Material: | Aluminium | Engine Code: | 1NZ-FE ; 2NZ-FE |
|---|---|---|---|
| Apply: | TOYOTA XP10 Echo ; TOYOTA XP90 Yaris ; Toyota XP130 Yaris | Displacement: | 1.3 ; 1.5 |
| Valve: | 16V/4Cyl | ||
| High Light: | aluminum cylinder heads,car cylinder head |
||
Introduction :
TOYOTA NZ-Engine
The 1NZ-FE is a 1.5 L (1,497 cc) conventional Otto-cycle variant of the 1NZ-FXE with VVT-i.
The engine block is found in Toyota models assembled in Japan and Asian countries.
It retains the same bore and stroke, but the compression ratio is lowered to 10.5:1.
Output is 109 hp (81 kW; 111 PS) at 6000 rpm with 141 N⋅m (104
lb⋅ft) of torque at 4200 rpm. The redline is 6400 rpm.
Applications:
Toyota Vios/Belta
Toyota Yaris/Echo
Scion xA/ist
Scion xB (1st generation)/Toyota bB (1st generation)
Toyota Raum
Toyota Porte
Toyota Platz
Toyota Ist
Toyota Auris
Toyota Fun Cargo
Toyota Premio
Toyota Allion
Toyota Sienta
WiLL VS
Toyota Probox
Toyota Ractis
Toyota Corolla (Axio/Fielder, RunX, Allex)
Geely CK (Produced under license)
Geely MK (Produced under license)
Great Wall C10
TOYOTA 2NZ is a member of TOYOTA NZ Engine Family .
TOYOTA 2NZ -FE ENGINE was a 1.3LPetrol Engine With four Cylinder Head , 16 Engine Valves.
It was First used in the TOYOTA XP10 Echo

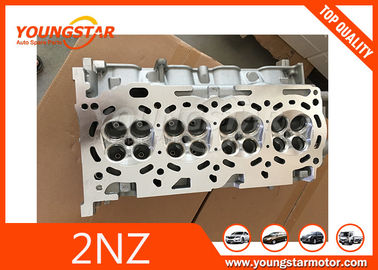

Pictures from Different Angle.
