Place of Origin: | ZheJiang, China |
Brand Name: | For TOYOTA |
Certification: | ISO 9001 / TS 16949 |
Model Number: | 1NR 1NR-FE |
Minimum Order Quantity: | 1 PCS |
---|---|
Payment Terms: | 100% Payment Before Delivery |
Material: | Aluminium | Apply: | For Toyota Lexus For Toyota Yaris |
---|---|---|---|
Displacement: | 1.3 EFI DVVT | ||
High Light: | aluminum cylinder heads,high performance cylinder heads |

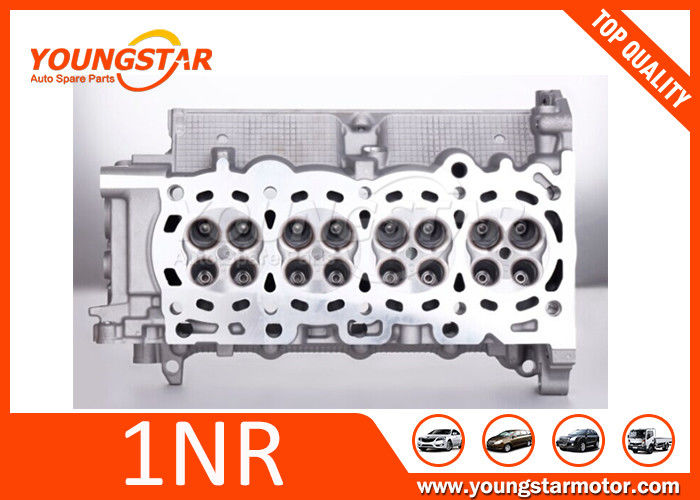

Engine Cylinder Head For TOYOTA Lexus Yaris 1NR 1NR-FE 16V 1.3 L
Apply :
Toyota Auris
Toyota Avanza[1]
Toyota Corolla
Toyota Corolla Axio (NRE160) (Japan)
Toyota iQ
Toyota Ractis
Toyota Urban Cruiser
Toyota Verso-S
Toyota Yaris
Technical specifications of the engine:
Displacement: 1,329 cc (81.1 cu in)
Bore x Stroke: 72.5 mm × 80.5 mm (2.85 in × 3.17 in)
Max. Output: Euro 4 Version: 74 kW (99 bhp) at 6000 rpm, Euro 5 Version: 73 kW (98 bhp) at 6000 rpm,
Indonesia Euro 3 Version: 72 kW (97 bhp) at 6000 rpm
Max. Torque: Euro 4 Version: 132 N·m (97.4 lb·ft) at 3800 rpm,
Euro 5 Version: 128 N·m (94.4 lb·ft) at 3800 rpm, Indonesia Euro 3 Version: 120 N·m (88.5 lb·ft)
Compression Ratio: 11.5:1; Indonesia Euro 3 Version: 10.5:1
Valve Mechanism: 16-valve DOHC, Chain Drive (with Dual VVT-i)
Fuel Injection System: EFI
Ignition System: Direct Ignition System
Emission Regulation: Euro 4 (Complies with Euro 5 after optimizations introduced in July 2010)
Engine Service Mass (incl. coolant & oil): 89.5 kg (197 lb)
6200 RPM Red Line
