| Place of Origin: | Zhejiang, China |
| Brand Name: | For KUBOTA |
| Certification: | ISO 9001 / TS 16949 |
| Model Number: | V1100 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton Box ; Wooden Box, Wood Pallets |
| Delivery Time: | 5-8 working days |
| Payment Terms: | 100% Payment Before Delivery |
| Supply Ability: | 1000 pcs / month |
| Material: | Casting Iron | Apply: | For KUBOTA TRACTOR |
|---|---|---|---|
| ENGINE: | V1100 | G.W: | 15 Kgs |
| High Light: | V1100 Engine Cylinder Head,Kubota Tractor Engine Cylinder Head,Kubota V1100 Cast Iron Cylinder Head |
||
Cylinder head for Kubota V1100
KUBOTA V1100 ENGINE DETAILS :
Engine Model .......... Kubota V1100
Engine Type .......... Vertical, water-cooled, 4-cycle diesel
Number of cylinders .......... 4
Bore, mm (in.) .......... 72.0 (2.83)
Stroke, mm (in.) .......... 70.0 (2.76)
Total displacement, cm3 (cu. in.) .......... 1140 (69.6)
Gross power, kw (hp) .......... 19.8 (26.5)
Net power, kw (hp) .......... 17.9 (24.0)
Maximum speed, rpm .......... 3200
Idling speed, rpm .......... 800
Maximum torque, Nm (ft-lb) .......... 68.5 (50.5)
Torque speed, rpm .......... 1800
Combustion Chamber .......... Spherical type
Direction of rotation .......... Counter-clockwise
Compression ratio .......... 22:1
Firing order .......... 1-3-4-2

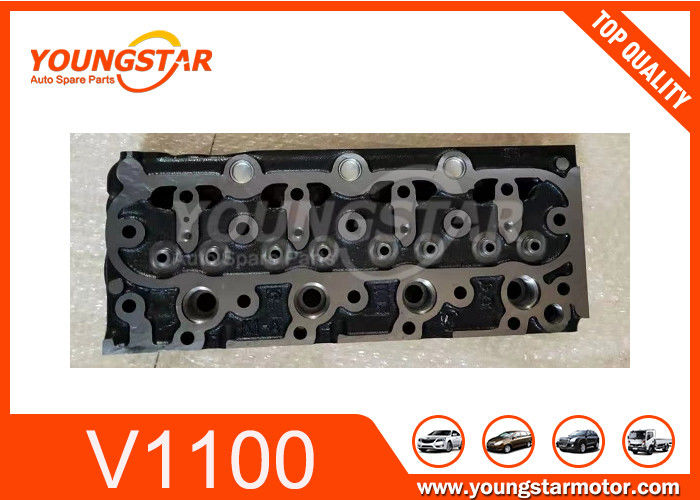

V1100 CYLINDER HEAD PHOTOS:
