| Place of Origin: | ZheJiang,China |
| Brand Name: | HINO |
| Certification: | ISO 9001 / TS 16949 |
| Model Number: | EF550 EF750 |
| Minimum Order Quantity: | 100PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Neutral Package |
| Delivery Time: | 5-15 Days |
| Payment Terms: | 100% Payment Before Delivery |
| Supply Ability: | 10000PCS/ Month |

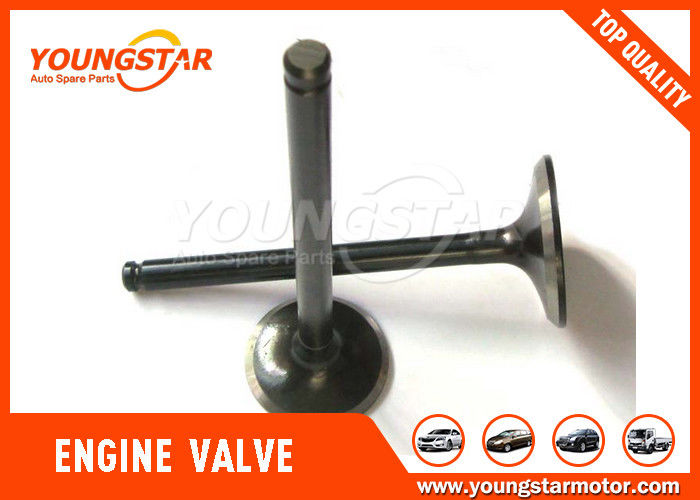

| Product Name: | Engine Valve ; Car Engine Valve | Application: | EF550 EF750 |
|---|---|---|---|
| O.E NO.: | 13711-1012 13711-1380A 13711-1390A 13711-1420A 13711-1450A 13711-1451A 13711-1560A 13711-1561A 13715-1012 13715-1013A | SIZE: | 57.0×12.0×170.0 ; 53.0×12.0×170.0 |
| High Light: | automotive engine valves,intake and exhaust valves |
||
| O.E. NUMBER | IN/EX | DIMENSION |
| D×d×L(mm) | ||
| 13711-1012 | IN | 57.0×12.0×170.0 |
| 13711-1380A | ||
| 13711-1390A | ||
| 13711-1420A | ||
| 13711-1450A | ||
| 13711-1451A | ||
| 13711-1560A | ||
| 13711-1561A | ||
| 13715-1012 | EX | 53.0×12.0×170.0 |
| 13715-1013A |
Material of Engine Valves
Normal material: INLET VALVE IS SUH1(40Cr) ; EXHAUST VALVE IS SUH3(4Cr9Si2).
Good material: INLET VALVE IS SUH3(4Cr9Si2) ; EXHAUST VALVE IS SUH35(21-4N)
Technology
1.Forging blank
2.800 ~1200Centigrade high temperature treatment
3.The inlet end of high-frequency quenching hardness, improve the tail, tail HRC hardness up to 48 ° ~55°, reduce end fracture and shorten service life
4.Surface nitridation processing, processing depth 0.008mm, nitriding colored grey, rust and increase the surface hardnes
